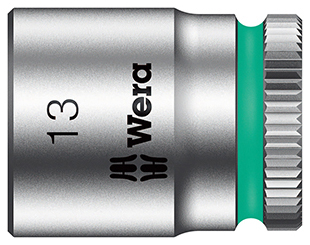

8790 HMA Zyklop 1/4" 套筒

维拉 > Zyklop 配件，1/4" > 8790 HMA Zyklop 1/4" 套筒
描述 应用 技术参数
应用：用于六角头螺栓、螺丝和螺母
设计：手动和（非冲击）机械应用，尾部滚花以便于手指握持操作，采用高品质铬钒钢，亚光镀铬处理。带“易寻”色标系统，可轻松找到所需套筒

产品参数列表
货号 mm mm mm mm mm
05003501001 4,0 23,0 6,9 13,0 10,0
05003502001 4,5 23,0 7,5 13,0 10,0
05003503001 5,0 23,0 8,2 13,0 10,0
05003504001 5,5 23,0 8,8 13,0 10,0
05003505001 6,0 23,0 9,4 13,0 10,0
05003506001 7,0 23,0 11,0 13,0 10,0
05003507001 8,0 23,0 12,0 13,0 10,0
05003508001 9,0 23,0 13,0 14,0 10,0
05003509001 10,0 23,0 14,5 14,5 -
05003510001 11,0 23,0 16,0 15,0 13,0
05003511001 12,0 23,0 17,0 16,0 13,0
05003512001 13,0 23,0 18,0 17,0 13,0
05003513001 14,0 23,0 20,0 18,0 13,0
05003514001 3/16" 23,0 7,5 13,0 10,0
05003515001 7/32" 23,0 8,8 13,0 10,0
05003516001 1/4" 23,0 11,0 13,0 10,0
05003517001 9/32" 23,0 11,0 13,0 10,0
05003518001 5/16" 23,0 12,0 13,0 10,0
05003519001 11/32" 23,0 13,0 14,0 10,0
05003520001 3/8" 23,0 14,5 14,5 -
05003521001 7/16" 23,0 16,0 15,0 13,0
05003522001 1/2" 23,0 18,0 17,0 13,0
05003523001 9/16" 23,0 20,0 18,0 13,0
