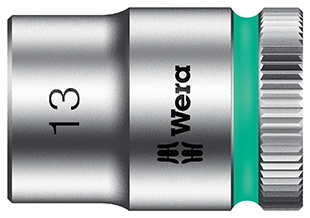

8790 HMB Zyklop 3/8" 套筒

维拉 > Zyklop 配件，3/8" > 8790 HMB Zyklop 3/8" 套筒
描述 应用 技术参数
应用：用于六角头螺栓、螺丝和螺母
设计：手动和（非冲击）机械应用，尾部滚花以便于手指握持操作，采用高品质铬钒钢，亚光镀铬处理。带“易寻”色标系统，可轻松找到所需套筒

产品参数列表
货号 mm mm mm mm mm
05003551001 6,0 29,0 10,5 18,0 12,0
05003552001 7,0 29,0 11,0 18,0 12,0
05003553001 8,0 29,0 12,2 18,0 12,0
05003554001 9,0 29,0 13,5 18,0 12,0
05003555001 10,0 29,0 14,5 18,0 12,0
05003556001 11,0 29,0 16,0 18,0 12,0
05003557001 12,0 29,0 17,0 18,0 12,0
05003558001 13,0 29,0 18,5 20,0 12,0
05003559001 14,0 29,0 19,5 22,0 12,0
05003560001 15,0 29,0 21,0 24,0 12,0
05003561001 16,0 30,0 22,0 24,0 12,0
05003562001 17,0 30,0 23,5 24,0 12,0
05003563001 18,0 30,0 24,5 24,0 18,0
05003564001 19,0 30,0 26,0 24,0 18,0
05003565001 20,0 30,0 28,0 25,0 18,0
05003566001 21,0 30,0 28,0 25,0 18,0
05003567001 22,0 30,0 32,0 25,0 18,0
05003568001 24,0 32,0 32,0 25,0 20,0
05003569001 1/4" 29,0 11,0 18,0 12,0
05003570001 5/16" 29,0 12,2 18,0 12,0
05003571001 11/32" 29,0 13,5 18,0 12,0
05003572001 3/8" 29,0 14,5 18,0 12,0
05003573001 7/16" 29,0 16,0 18,0 12,0
05003574001 1/2" 29,0 18,5 20,0 12,0
05003575001 9/16" 29,0 19,5 22,0 12,0
05003576001 5/8" 30,0 22,0 24,0 12,0
05003577001 11/16" 30,0 23,0 24,0 18,0
05003578001 3/4" 30,0 26,0 24,0 18,0
05003579001 13/16" 30,0 28,0 25,0 18,0
05003580001 7/8" 30,0 32,0 25,0 18,0
