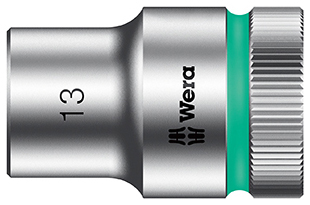

8790 HMC Zyklop 套筒，1/2" 驱动

维拉 > Zyklop 配件，1/2" > 8790 HMC Zyklop 套筒，1/2" 驱动
描述 应用 技术参数
应用：用于六角头螺栓、螺丝和螺母
设计：手动和（非冲击）机械应用，尾部滚花以便于手指握持操作，采用高品质铬钒钢，亚光镀铬处理。带“易寻”色标系统，可轻松找到所需套筒

产品参数列表
货号 mm mm mm mm mm
05003601001 10,0 37,0 15,5 24,0 17,0
05003602001 11,0 37,0 16,5 24,0 17,0
05003603001 12,0 37,0 17,5 24,0 17,0
05003604001 13,0 37,0 19,0 24,0 17,0
05003605001 14,0 37,0 20,0 24,0 17,0
05003606001 15,0 37,0 21,0 24,0 17,0
05003607001 16,0 37,0 22,5 24,0 17,0
05003608001 17,0 37,0 24,0 26,0 17,0
05003609001 18,0 37,0 25,0 26,0 17,0
05003610001 19,0 37,0 26,5 26,0 20,0
05003611001 20,0 37,0 28,0 26,0 20,0
05003612001 21,0 37,0 29,0 26,0 20,0
05003613001 22,0 37,0 30,5 26,0 20,0
05003614001 24,0 37,0 33,0 28,0 20,0
05003615001 27,0 40,0 36,5 32,0 23,0
05003616001 30,0 42,0 40,0 34,0 25,0
05003617001 32,0 42,0 42,0 36,0 25,0
05003618001 3/8" 37,0 15,5 24,0 17,0
05003619001 7/16" 37,0 16,5 24,0 17,0
05003620001 1/2" 37,0 19,0 24,0 17,0
05003621001 9/16" 37,0 20,0 24,0 17,0
05003622001 19/32" 37,0 21,0 24,0 17,0
05003623001 5/8" 37,0 22,5 24,0 17,0
05003624001 11/16" 37,0 25,5 26,0 17,0
05003625001 3/4" 37,0 26,5 26,0 20,0
05003626001 25/32" 37,0 28,0 26,0 20,0
05003627001 13/16" 37,0 29,0 26,0 20,0
05003628001 7/8" 37,0 30,5 26,0 20,0
05003629001 15/16" 37,0 33,0 28,0 20,0
05003630001 31/32" 37,0 33,0 28,0 20,0
05003631001 1" 40,0 36,5 32,0 23,0
05003632001 1 1/16" 40,0 36,5 32,0 23,0
05003633001 1 1/8" 40,0 40,0 34,0 23,0
05003634001 1 3/16" 42,0 40,0 34,0 25,0
05003635001 1 1/4" 42,0 42,0 36,0 25,0
